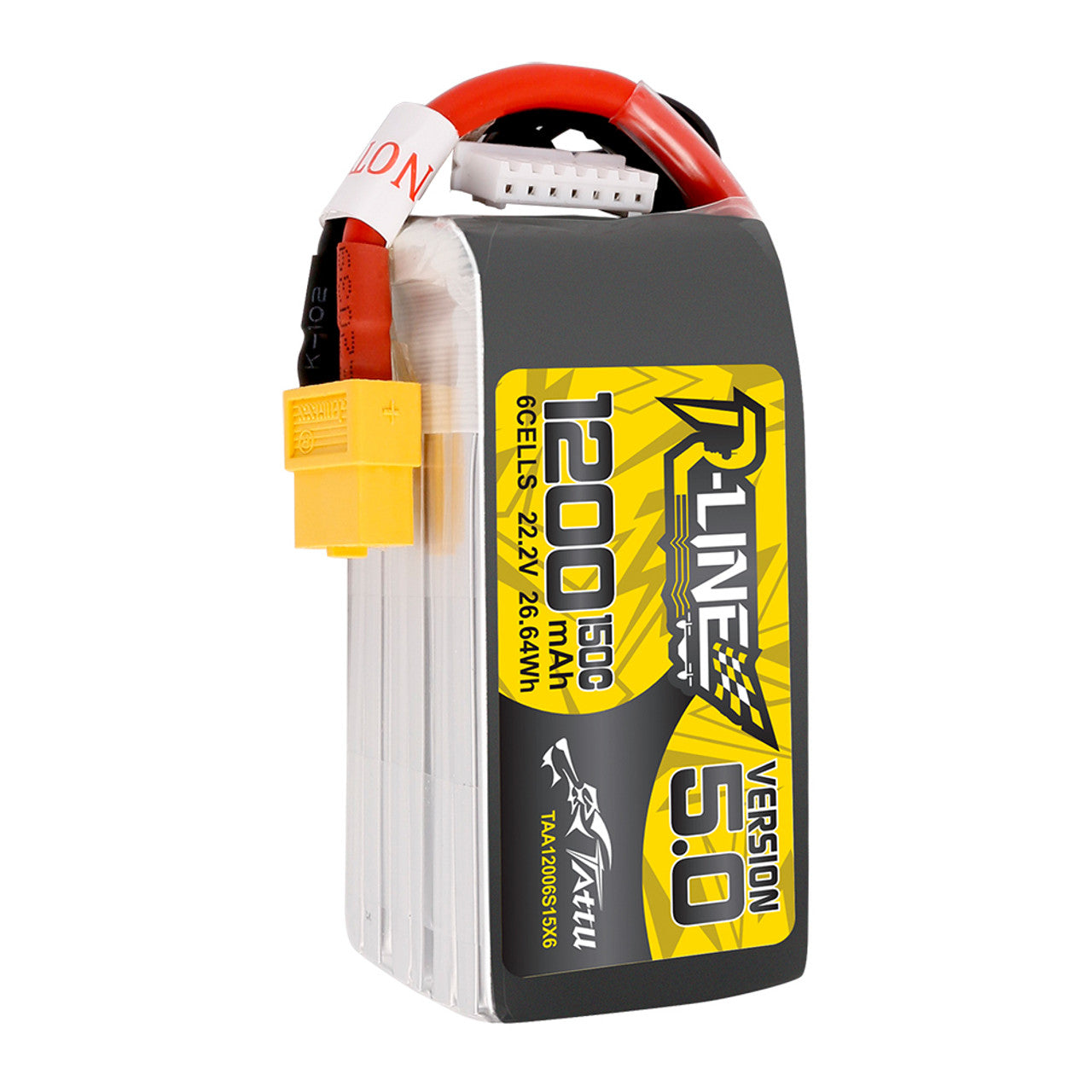

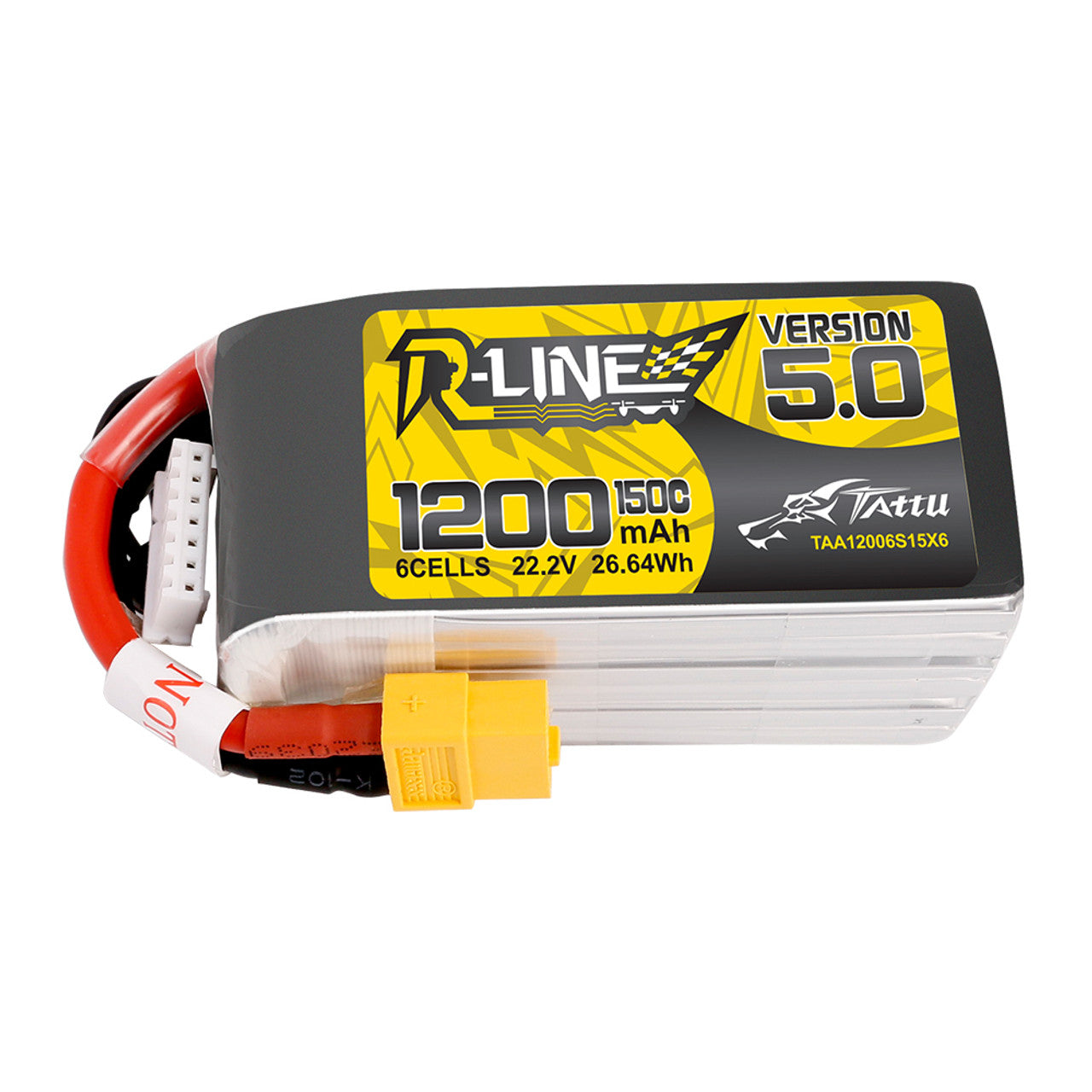

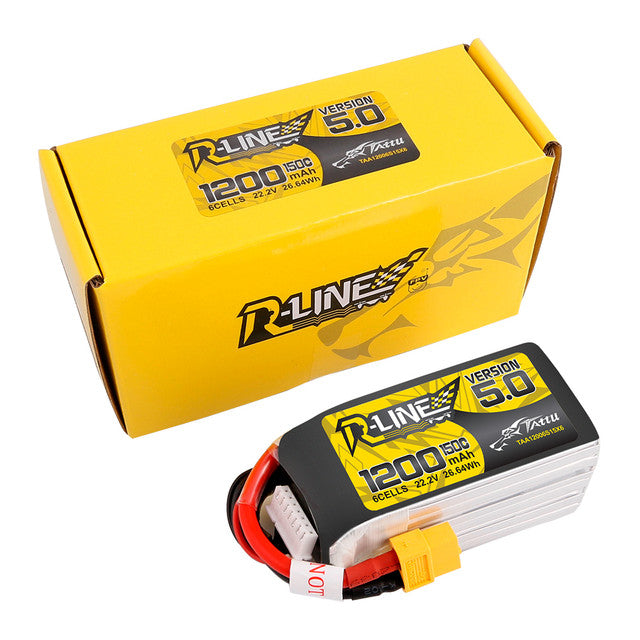

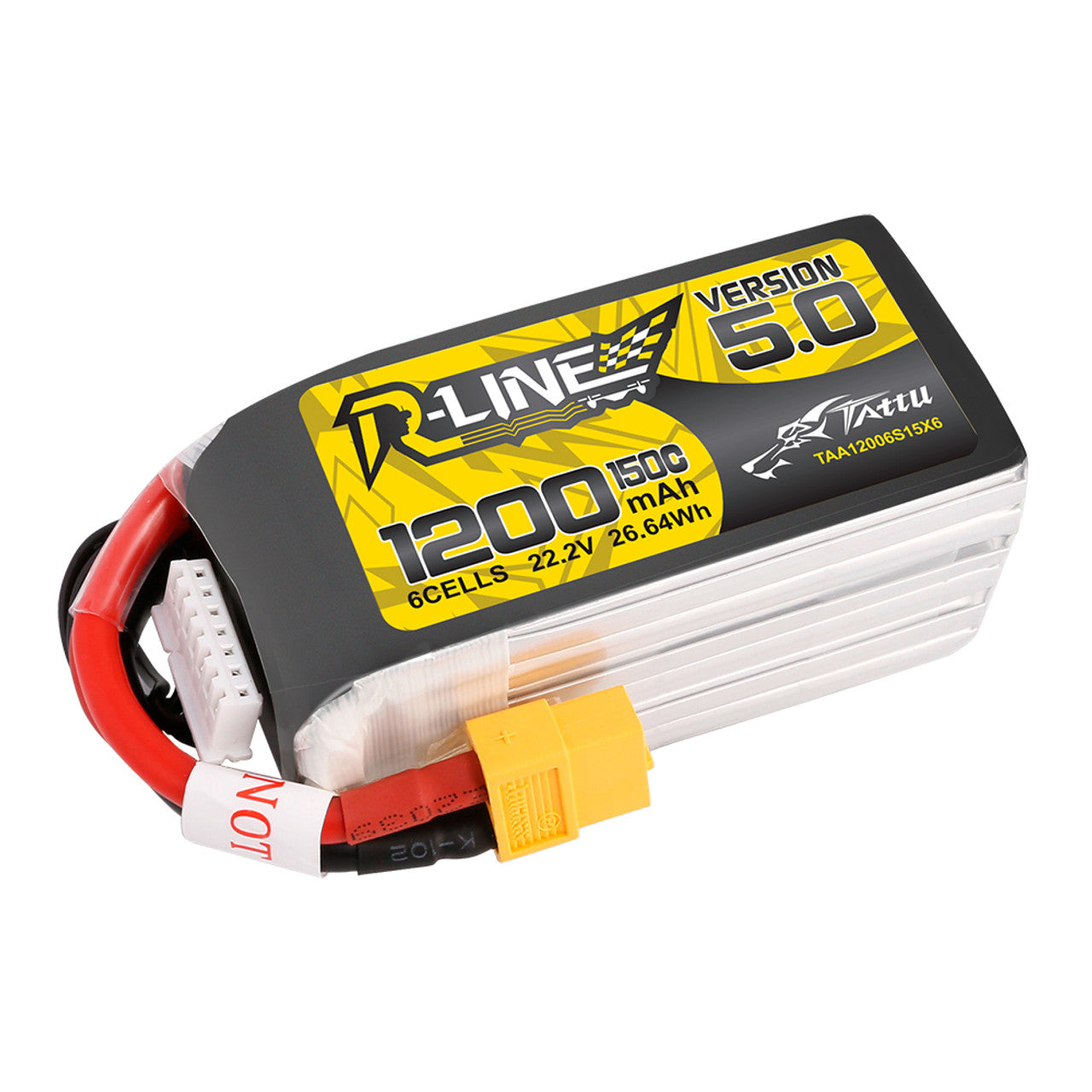

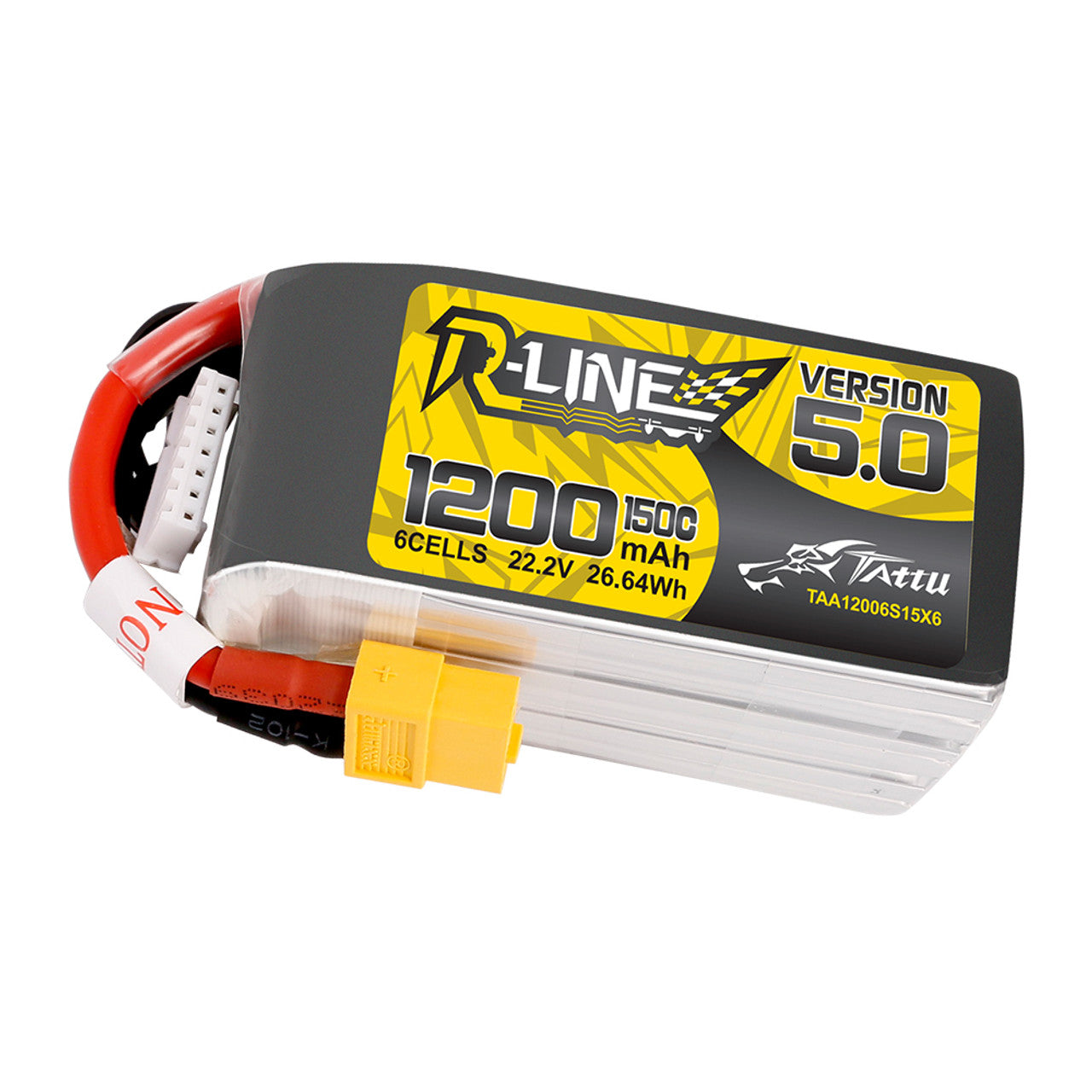

Tattu R-Line Version 5.0 1200mAh 6S 150C 22.2V LiPo Battery Pack with XT60 Plug
Tattu R-Line Version 5.0 1200mAh 6S 150C 22.2V LiPo Battery Pack with XT60 Plug
Couldn't load pickup availability
Tattu R-Line Version 5.0 1200mAh 6S 150C 22.2V LiPo Battery Pack with XT60 Plug
** Batteries cannot be shipped overseas (internationally) **
Here at Armattan we ONLY settle for the best, which is why we are excited to bring Tattu batteries to our offerings!
Tattu R-Line Version 5.0 1200mAh 6s 22.2V 150C LiPo battery pack is the updated version of R-Line series in 2022.
What is R-Line? R-Line is a brand new product line specifically designed for professional FPV racing competitions. It's got higher capacity, lower internal resistance, and lower landing temperatures. They are more powerful than any graphene battery. Generally, R-Line batteries have the same specs as our popular Toppilot batteries. There are different R-Line versions for the needs of different FPV racing competitions.
It is worth mentioning that R-line V5 uses our exclusive technology Al Boehmite for the first time, which will offer a significant improvement in overall performance and continuous power output.
Specifications:
- Minimum Capacity: 1200mAh
- Configuration: 6S / 22.2V / 6 Cells
- Discharge Rate: 150C
- Max Burst Discharge Rate: 260C
- Net Weight(±20g): 197g
- Dimensions:78mm x 40mm x 34mm (L x W x H)
- Charge Plug: JST-XHR
- Discharge Plug: XT60
What have improved?
- First use of X technology Al Boehmite
- Highly consistent and continuous power output
- Less decrease in performance after cycles
- Higher discharge platform
-
Resistance to dropping
| Balancer Connector Type: | JST-XHR-7P |
| Brand: | Tattu |
| Capacity(mAh): | 1200 |
| Balancer Wire Length(mm): | 45 |
| Configuration: | 6S1P |
| Connector Type: | XT60U |
| Discharge Rate (C): | 150 |
| Height(±2mm): | 34 |
| is featured product: | No |
| Length(±5mm): | 78 |
| Max Burst discharge Rate (C): | / |
| Net Weight(±20g): | 197 |
| Over 300wh: | No |
| over_power: | No |
| Preorder config: | No |
| sorting: | TattuFPV |
| upc: | 889551114608 |
| Voltage(V): | 22.2 |
| Width(±2mm): | 40 |
| Wire Gauge: | 12# |
| Discharge Wire Length(mm): | 65 |
| Amount: | 1 pc |
| Capacity Range(mAh): | 1000-2999 |
| Series: | R-Line |
| Part N: | TA-RL5-150C-1200-6S1P-XT60U |
** MUST READ **
- LiPo batteries can be hazardous in any case, but can be even more dangerous if not cared for properly.
- By purchasing this LiPo battery you are accepting full responsibility for any damages that may occur bodily or to property in case of LiPo fire.
- Basic battery care recommendations:
1.) NEVER over-discharge (less than 3.7v) or over-charge (more than 4.2v)
2.) NEVER store fully charged or longer than 24 hours
3.) Keep out of direct sunlight and away from sources of intense heat
4.) ALWAYS store in a fire safe location when not in use
5.) NEVER EVER LEAVE UNATTENDED WHILE CHARGING OR DISCHARGING
