Armattan Quads

Tadpole Frame Kit - Choose 2.5" / 65mm or 3"

Tadpole Frame Kit - Choose 2.5" / 65mm or 3"

Regular price $35.70 USD
Regular price Sale price $35.70 USD
Sale Sold out

 Tadpole Frame Kit - Choose 2.5"/65mm or 3"

Tadpole Specs

Frame Weight 17.5 grams
Motor to Motor 119.5mm
Frame Shape Compressed X
Main Plate Thickness 2mm


Motor Mount Pattern 9mm
FC Stack Mount 16x16 or optional whoop AIO bracket
FPV Camera Mount Nano (14mm)
FPV Antenna Mounts Custom rubber holder (1.8mm)
Max Stack Height 16mm
Warrantied Parts Bumper to bumper

Recommended Components

Motor Size 12xx
Cams Caddx Ant

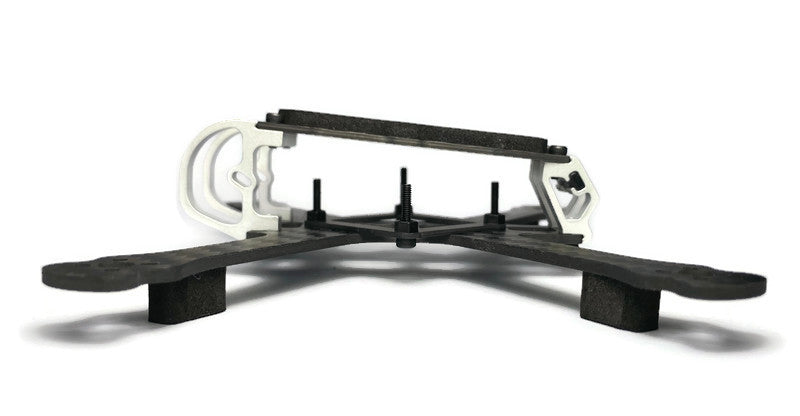

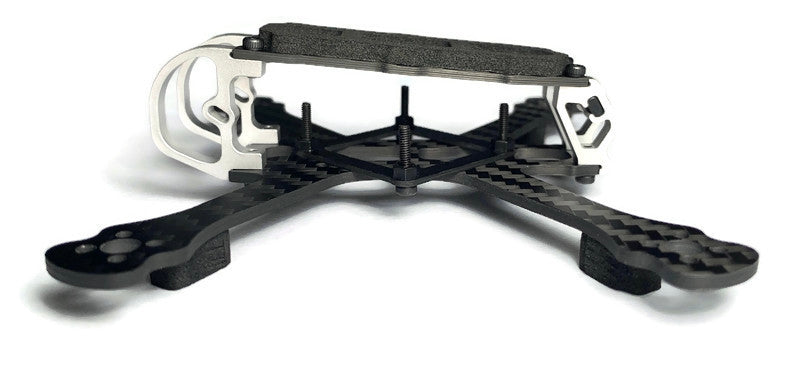

OPTIONAL Whoop AIO Board Bracket Mount Kit
Prop Size 65mm / 2.5 inch or 3"
LiPo 3S or 4S at 450mAh or 550mAh

Armattan Tadpole

We've been asked many time to design something smaller for 65mm props. We had been reluctant for two reasons.

The first reason was that there were not many options for small motors and even props for quite some time. By now the popularity of such weight class has brought about many more options in terms of motors, but also good options for 16 x 16 stacks that can run such small models well.

The second reason is that we did not want to do a minimalistic frame with a POD style 3D printed or plastic canopies, as we intended on using a top mount battery.

Our goal was to make something light, strong, and it had to have a top mounted battery. With Jason Hay's help, we came up with a number of solutions to keep weight down while meeting our design goals.

Introducing the Armattan Tadpole.

-65mm props

-top mounted lipo as it makes more sense for a small fun flyer/ freestyle frame.

-custom aluminum front cage fully protecting a nano cam

-custom shorter rear aluminum posts

-new rubber moulded vtx antenna mount that is modular with the custom aluminum rear posts. No bolts needed.

-slightly slanted aerodynamic top lipo plate. (This is the result of shedding weight from the rear end.)

-dry frame weight (fully assembled): 17.5 grams.
