Item: Ranger Micro Module
- Receivers: 2x RP1 and 1x RP2 with antennas
- Region: FCC
-
Regulatory Domain: ISM2400
-
MCU: ESP32(main), ESP8285 (aux,as ESP backpack)
-
RF chip: SX1281IMLTRT
-
Frequency Range: 2400 MHz - 2480 MHz
-
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EdgeTX 2.7.1 or later)
-
Minimum receiver refresh rate: 25Hz
-
RF Output Power: Default 100mW
-
Wifi Support: Yes
-
Bluetooth support: Yes
-

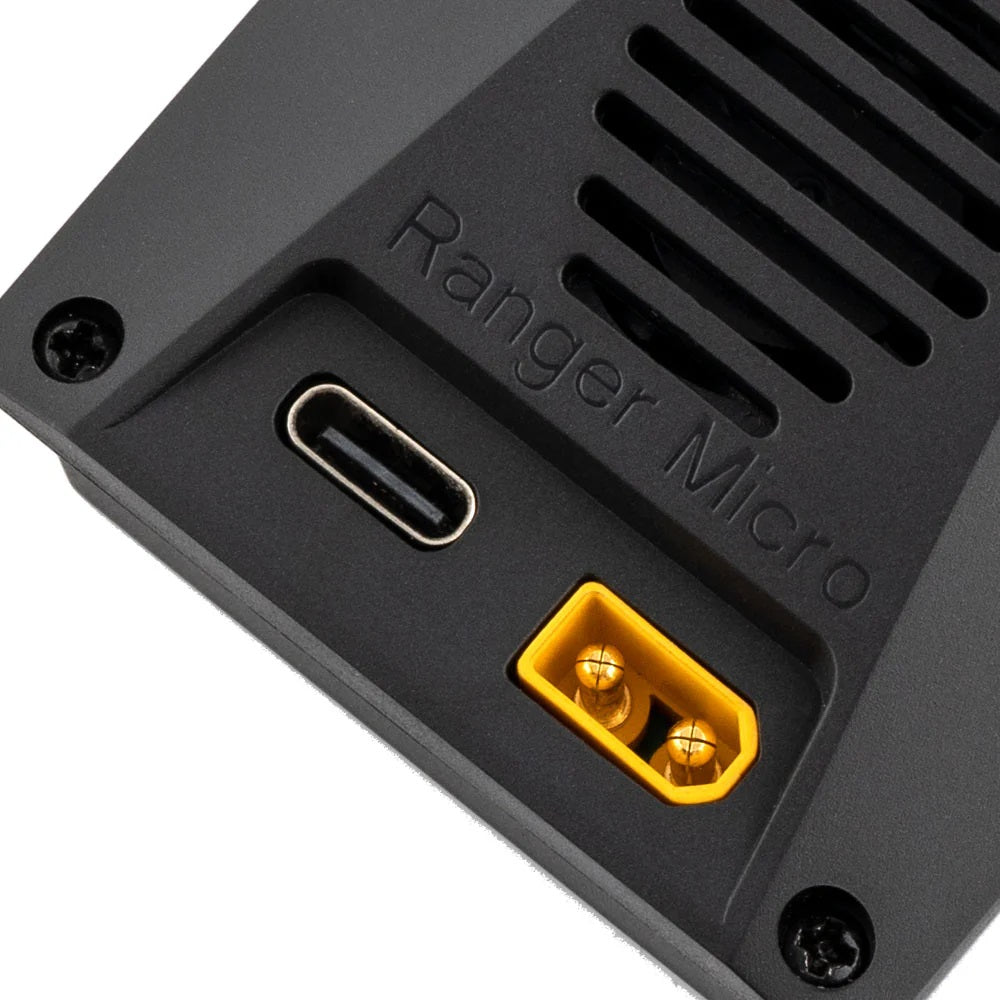

XT30 Power supply voltage: DC 6V - 16.8V
-
Weight: 50g (with antenna) / 40.5g (without antenna)
-
Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
Radiomaster

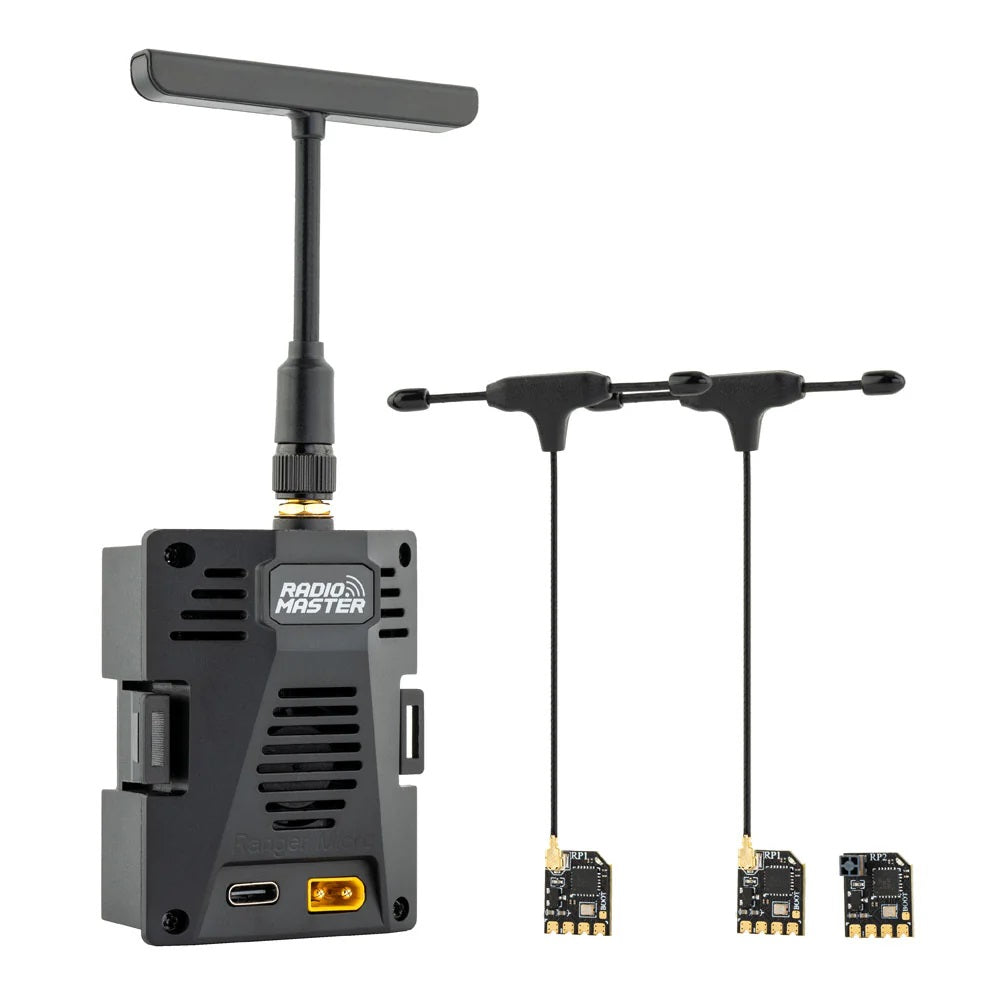

Radiomaster Ranger Micro 2.4GHZ ELRS Transmitter Module Combo Package w/ 2x RP1 and 1x RP2 Receivers
Radiomaster Ranger Micro 2.4GHZ ELRS Transmitter Module Combo Package w/ 2x RP1 and 1x RP2 Receivers
Regular price
$59.99 USD
Regular price
$96.96 USD
Sale price
$59.99 USD
Unit price
per
Couldn't load pickup availability
Radiomaster Ranger Micro 2.4GHZ ELRS Transmitter Module Combo Package w/ 2x RP1 and 1x RP2 Receivers
Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!
This Ranger Micro Combo Package come with two RP1 and one RP2 receivers included, saving you $36.97 compared to buying the Tx and Rx separately!

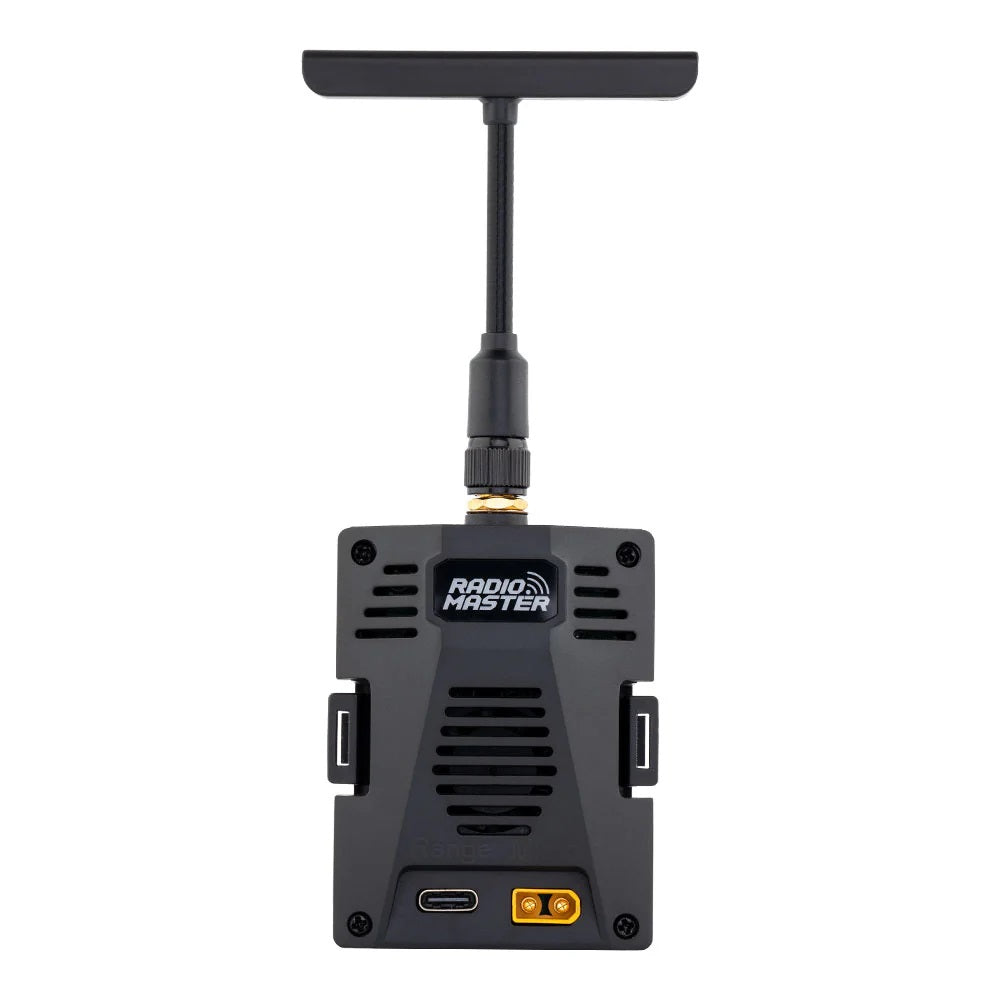

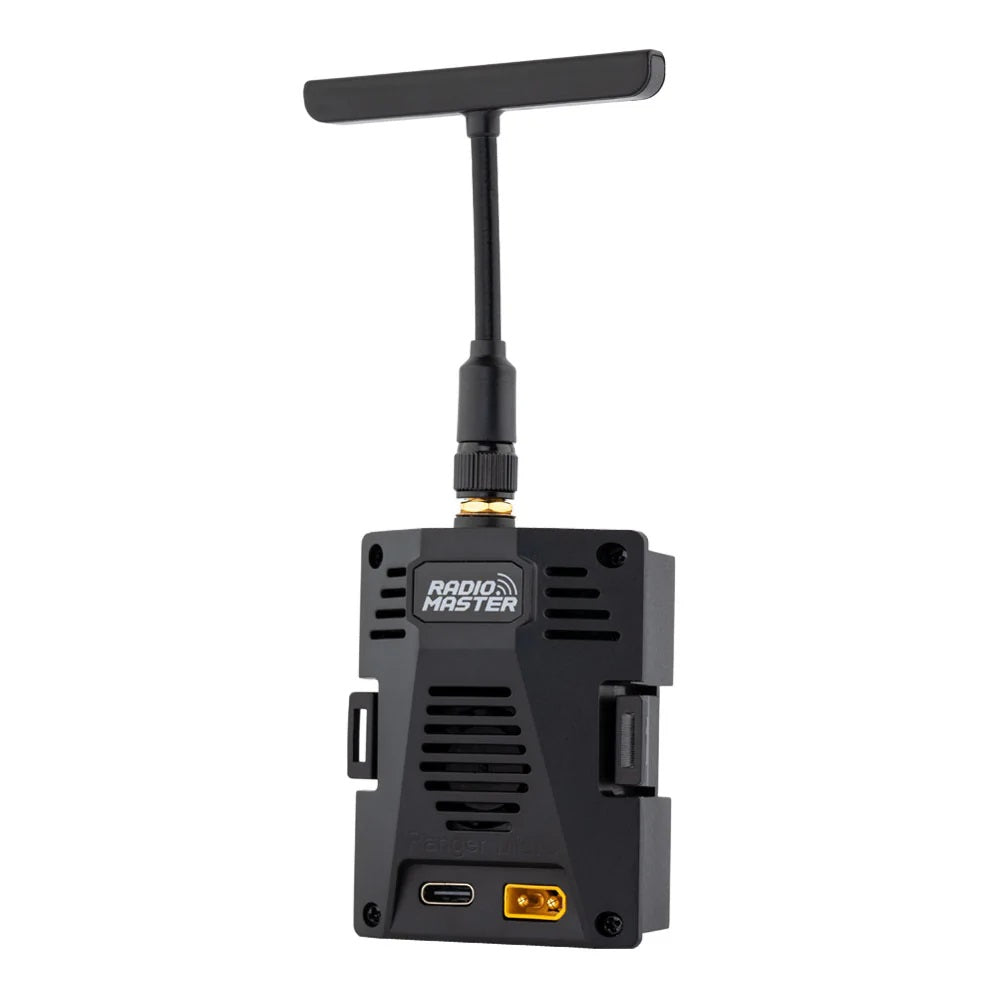

Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (using JR/Micro module bay) to enjoy all that ELRS has to offer.

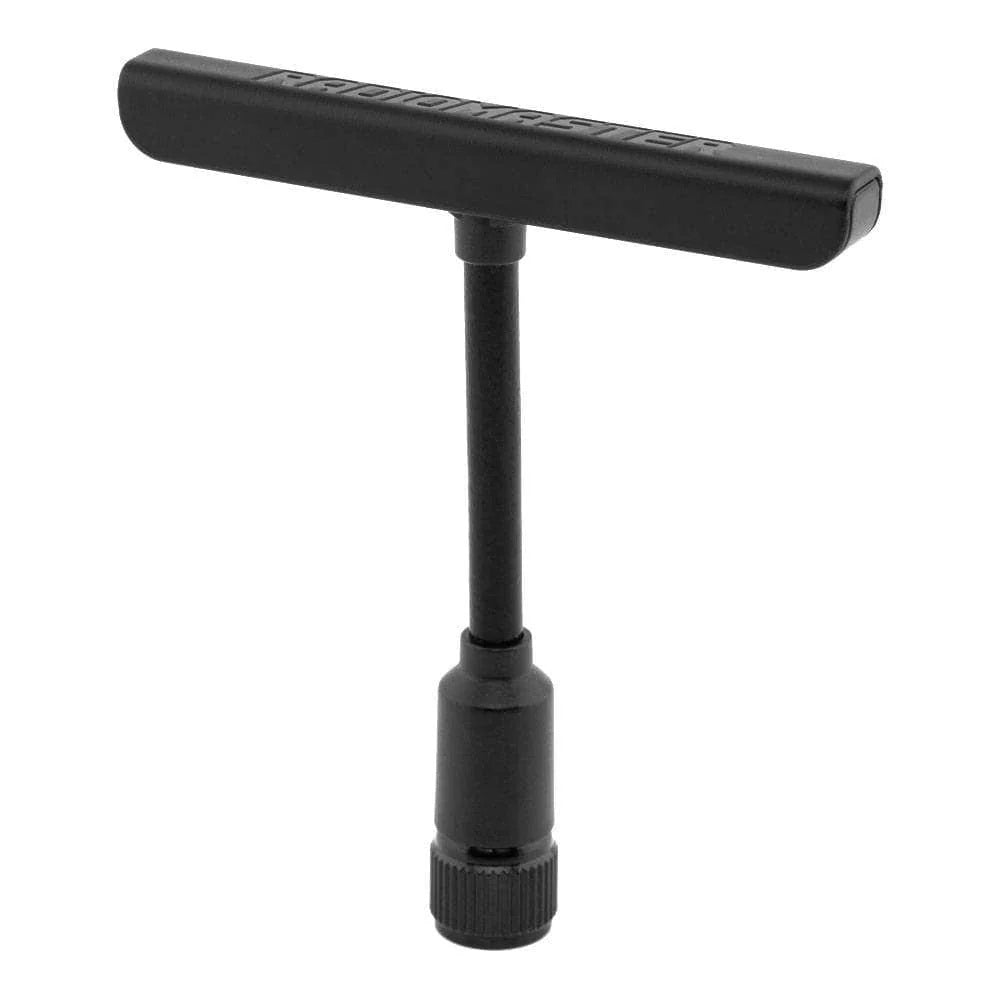

The included T-shape antenna is designed for maximum signal coverage.
*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays.
Fits into TX16S and Boxer radio module bays, as well as many other radios.
Pairs well with Radiomaster ELRS RP Series Receivers.
Find all of our Radiomaster products HERE.
Features
- Built-in ExpressLRS Backpack
-
High-efficiency cooling system
-
Wifi and Bluetooth support
-
Packet rates up to F-1000Hz
-
T-antenna included
-
With the Micro connector, support TX16S MKII and TX12 MKII radio
Specification
Dimensions
Ranger Series
We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/
Package Includes
- 1x Radiomaster Ranger Micro 2.4Ghz ELRS Module
- 1x JR Standard 5pin Socket Module Bay Adapter
- 1x 2.4GHz T Antenna - RP-SMA

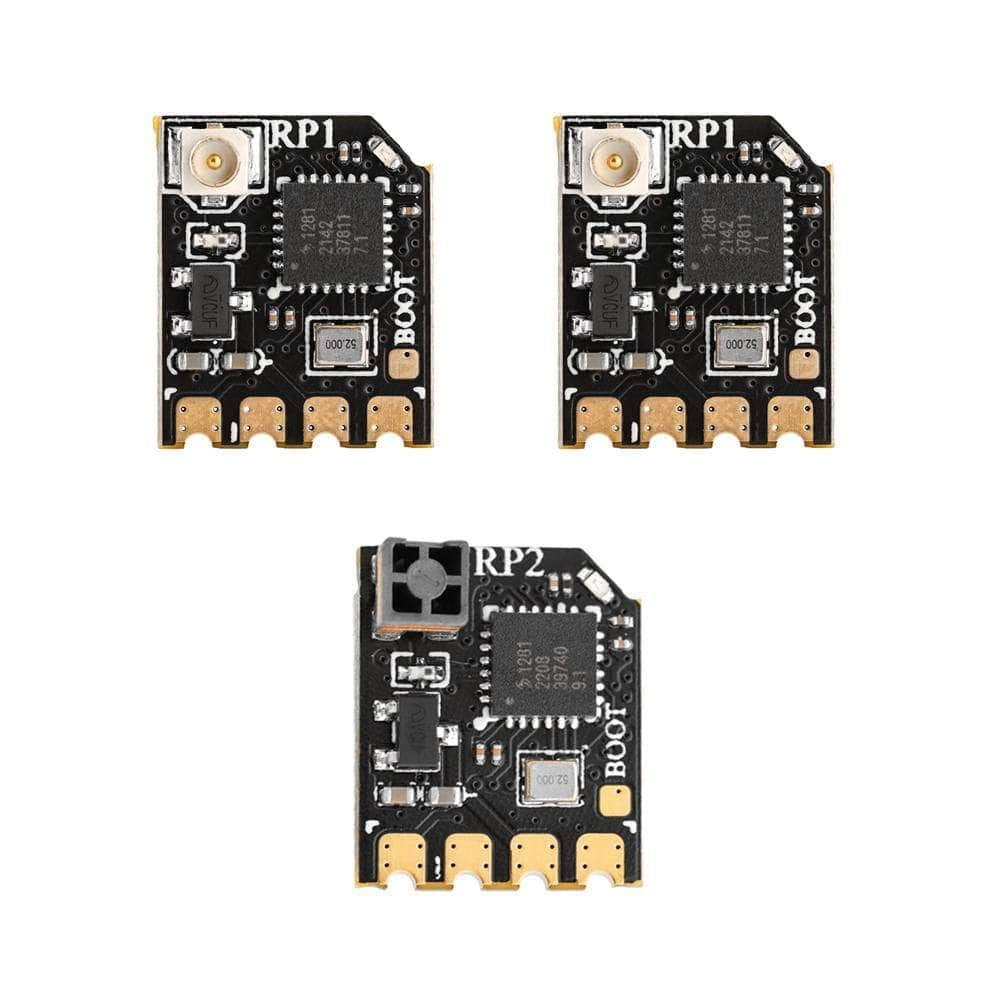

- 2x Radiomaster RP1 Receiver
- 1x Radiomaster RP2 Receiver
- 1x Connecting Wire
- 1x Allen Key
- 3x Screws
