Armattan Quads

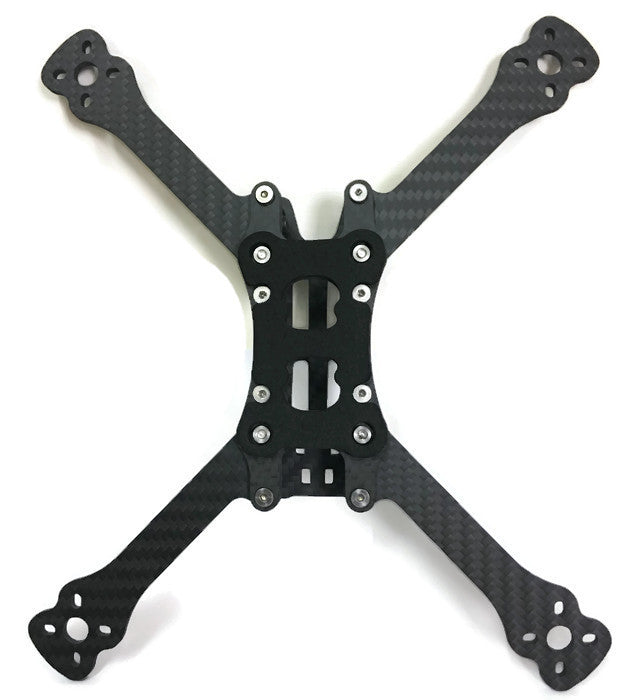

Mongoose 5" Frame Kit - Choose 3mm or 4mm thick arms

Mongoose 5" Frame Kit - Choose 3mm or 4mm thick arms

Regular price $40.50 USD
Regular price Sale price $40.50 USD
Sale Sold out
Arm Thickness

Mongoose 5" Frame Kit - Choose 3mm or 4mm thick arms

Mongoose Specs
Frame Weight 67 grams (foam pads included)
Motor to Motor 228
Frame Shape Stretch-X
Bottom Plate Thickness 3mm
Arm Thickness 3mm** or 4mm *Optional
Hardware Stainless steel
Center Stack Mount Pattern 30.5mm or 20mm
FPV Camera Mount 19mm/micro
Max Center Stack Height 23mm
Warrantied Parts None

Recommended Components

Motor Sizes 22xx-23xx
Prop Size 5"
LiPo 4-6S / 1100-1300mah

Chris, founder of Armattan Quads, describes the features of the Armattan Mongoose.

IMPORTANT NOTE: This model is NOT lifetime warranty. It is a part of our Lite Series which do not carry a breakage warranty. We simply cannot warranty a 60 gram frame. This frame is designed for performance on a race track where weight is very important.


Armattan Mongoose

Just as ferocious as the animal

When asked to describe the Mongoose, the owner of Armattan Quads simply said "Refined, but affordable." Without a doubt, that is the best way to describe this masterful frame.

What is it?

The Mongoose is the newest entry into Armattan's Lite series of frames, and is built to be inexpensive, strong, and light. While those descriptors often can't coexist, the Mongoose provides a unique package that truly encompasses them all. At 61 grams, it is less than half of the weight of the fabled Armattan Chameleon. Even so, the high quality carbon fiber, aluminum, and stainless steel hardware provides a robust airframe that you'll have to work to break.

One of the unique weight-saving features of this frame is the front standoff. By utilizing a piece of 3D CNC'd aluminum, it combines the forward structure of the frame with the FPV camera mount. This will fit and protect any of the newer 19mm micro FPV cameras produced by the big manufacturers. Another feature of that standoff is that it continues down to help secure the arm. By doing this on each of the corners, the total number of bolts needed to assemble this stretched-x racer was reduced to 12.

Set and sunk between the 3mm or 4mm arms is the stack provision for this frame. Either 30.5mm or 20mm flight controllers will be right at home, and either will easily able to accommodate multiple boards with the provided 23mm of headroom. Also, since the stack is set between the arms, swapping an arm will be a piece of cake. Remove 2 screws to take out the old, and put them back to install the new: no need to fiddle with the stack.

As you likely know, the debate between batteries mounted on top or bottom rages on. That's why this frame can support batteries in either location. It'll even come with 2 custom LiPo protection pads to help keep your battery where it belongs. Lastly, the zip tie holes in the top plate provide a clean, solid mount for your VTX antenna. There's much less cause to worry about snapping your SMA adapter when it isn't exposed to the dangers of a direct impact.

What does "Armattan Lite" mean?

Like our other "Armattan Lite" frames, the Mongoose does not come with a warranty. After careful consideration, we did this to provide an option in the Armattan lineup that is both light and cheap! This makes for an ideal racing frame, or maybe just the frame you use to do something you know is a bad idea.


Stainless steel:
4x 6mm M3 (top plate mounting)
4x 8mm M3 (arms inner attachment)
4x 10mm M3 (arms outer attachment)
4x sunk nuts (holds the arms to the center plate + 2 spares included)

4x 16mm M3 bolts (FC stack)
2x 5mm M2 bolts (cam mount)

2x 20mm cam mounting standoffs
2x 20mm standoffs

4x 6mm standoffs (FC stack)

4x M3 nylon nuts (FC stack)

Carbon Fiber:
1x Top plate 2mm
1x Center plate 3mm
4x Arms 3mm or 4mm *Optional

1x Lipo strap
1x Bottom foam pad
1x Top foam pad
4x Dog-bone landing pads
1x Parts list
