GPS Module

GPS Module

Model:
GX-A2525H2

Features:

- Voltage range: 3.3v~5v
-Built on high performance GPS single chip HD-8020
- High Sensitivity -165 dBm
- Low power consumption: Max 55mA@3.3V
- Integrated LNA with low-gain mode for active antenna option
- 56 channels in Search mode and 22 channels "All-in-View" tracking
- Up to 60,000 simultaneous search windows for fast TTFF and high sensitivity acquisitions
- Average cold start time under 29seconds(open sky)
- Support standard NMEA-0183 and UBLOX binary protocol
- Size:25(w)mm X 25(d)mm X 8(h)mm
- RoHS compliant (Lead-free)

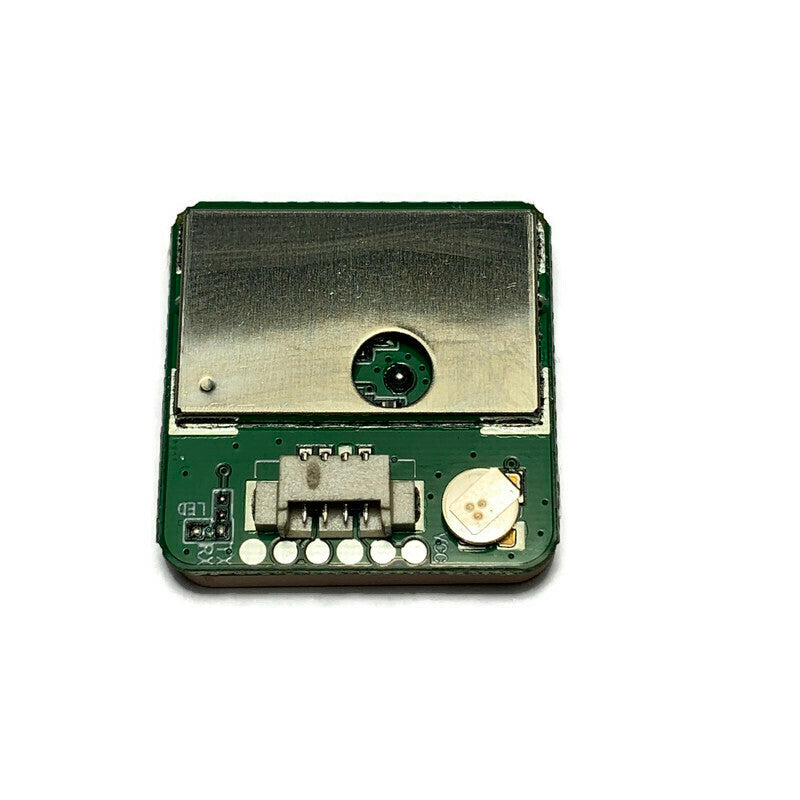

Pinout plug from left to right:
RX / TX / GND / VCC

Pinout solder-on pads from left to right:
GND / RX / TX / GND / VCC / VCC
