Armattan Quads

Emax ECO II 2306 Motor (1 piece) - 1900kv or 2400kv

Emax ECO II 2306 Motor (1 piece) - 1900kv or 2400kv

Regular price $15.99 USD
Regular price Sale price $15.99 USD
Sale Sold out


Motor Specifications

Stator Diameter


Stator Height


KV (rpm/Volt)

1900 or 2400


30.2 grams (without cable)

Wire Length


Wire Gauge

20 AWG

Recommended Props

5 inch

LiPo Compatibility


Prop Mount Diameter




Set Screw


Mounting pattern

M3 16x16

Emax ECO II 2306

The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on the performance and durability while retaining the same affordability.

Redesigned from the ground up, the ECO II boasts an all new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.

In order to improve the performance from its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.

The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone.

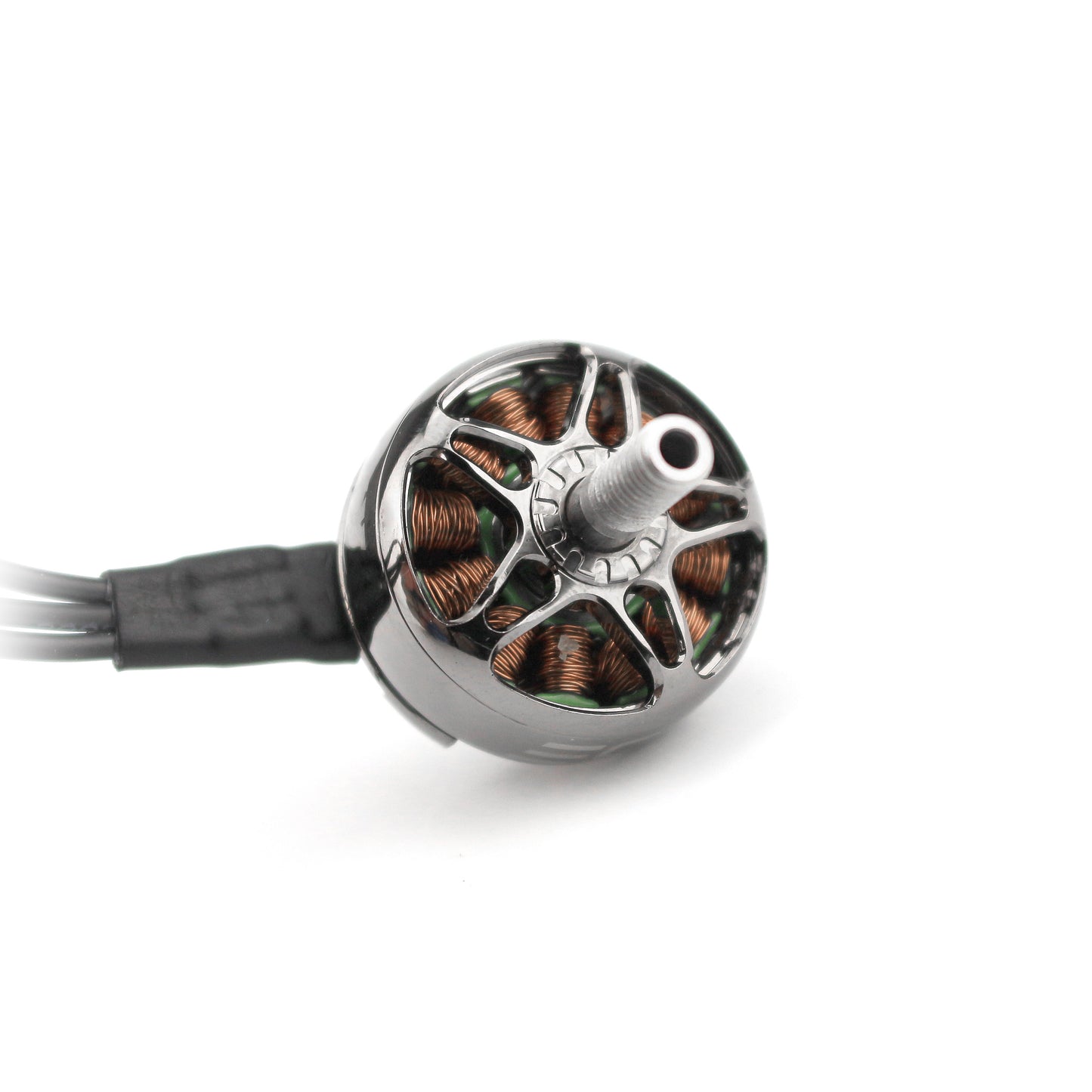

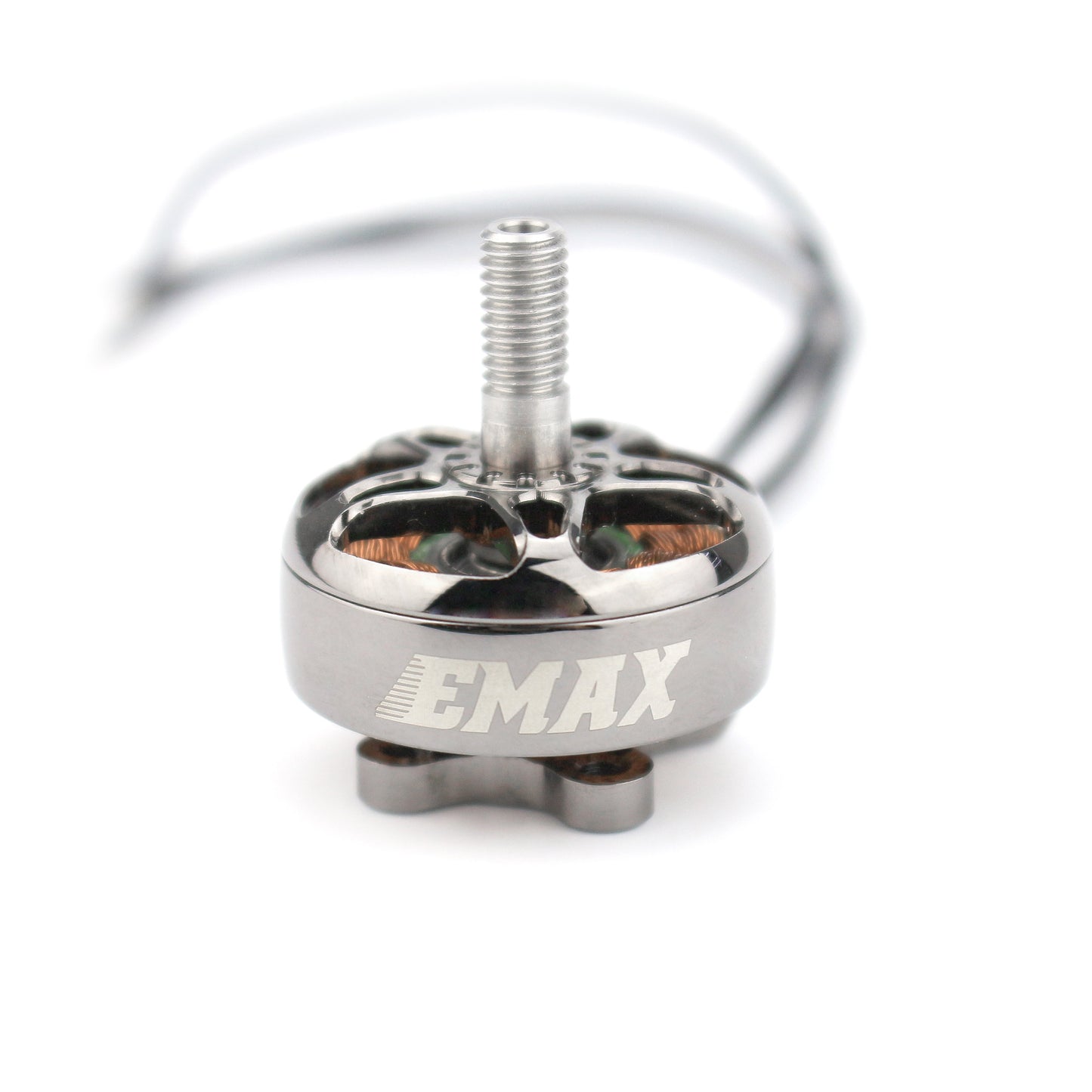

A brand new design with a rounded bell and stronger attachment points for increased durability.
Fully mirror-polished finish that shines and glistens with even the smallest hint of light.
Upgraded N52SH curved arc magnets for tighter airgap and better performance.
EZO 9mm bearing for unparalleled smooth operation.

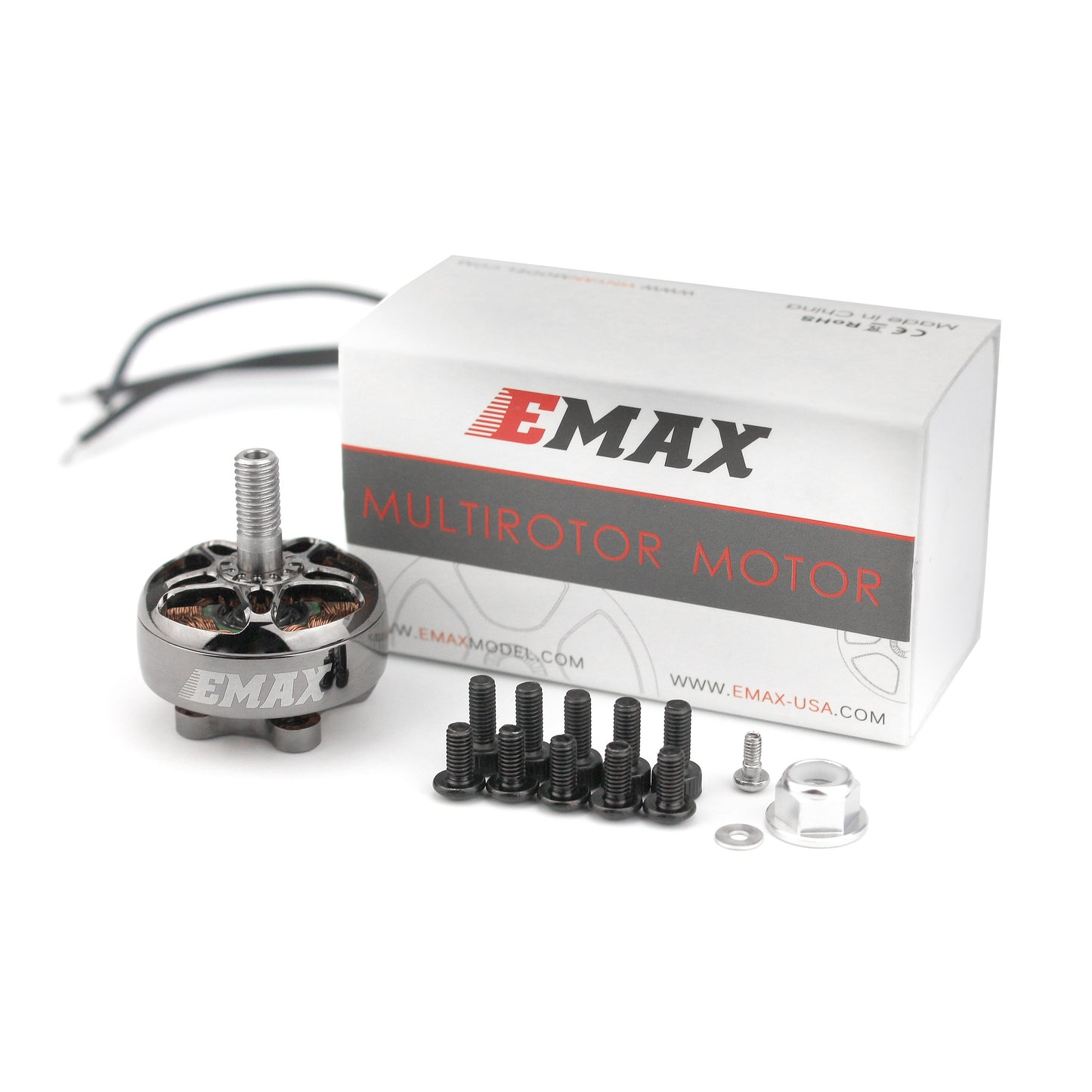

Package includes:
5x M3*8 Screw
5x M3*7 Screw
5x M3*6 Screw
1x Aluminum M5 nylock nut
1x Washer and Screw for shaft
