SabotageRC Dingo 6" Frame Kit
SabotageRC Dingo 6" Frame Kit
Couldn't load pickup availability
SabotageRC Dingo 6" Frame Kit

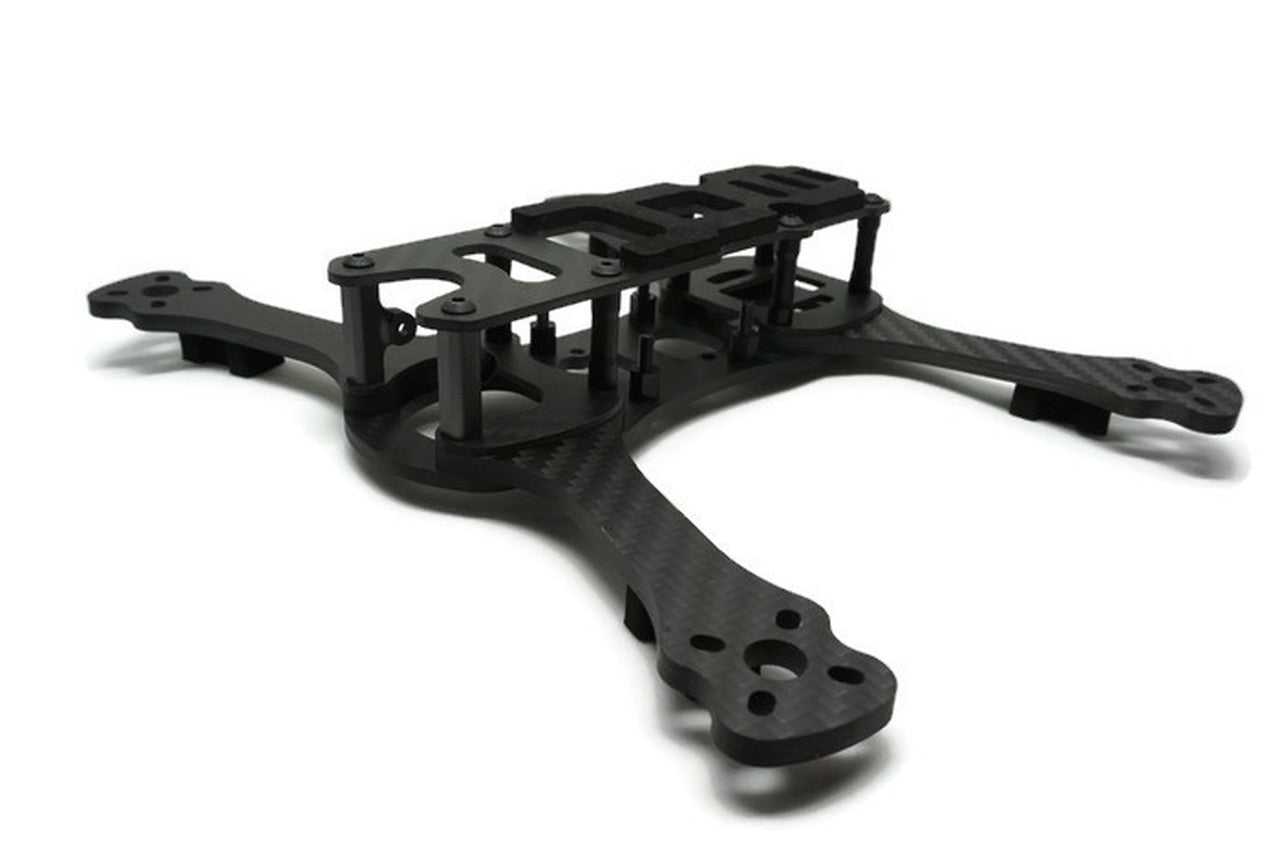

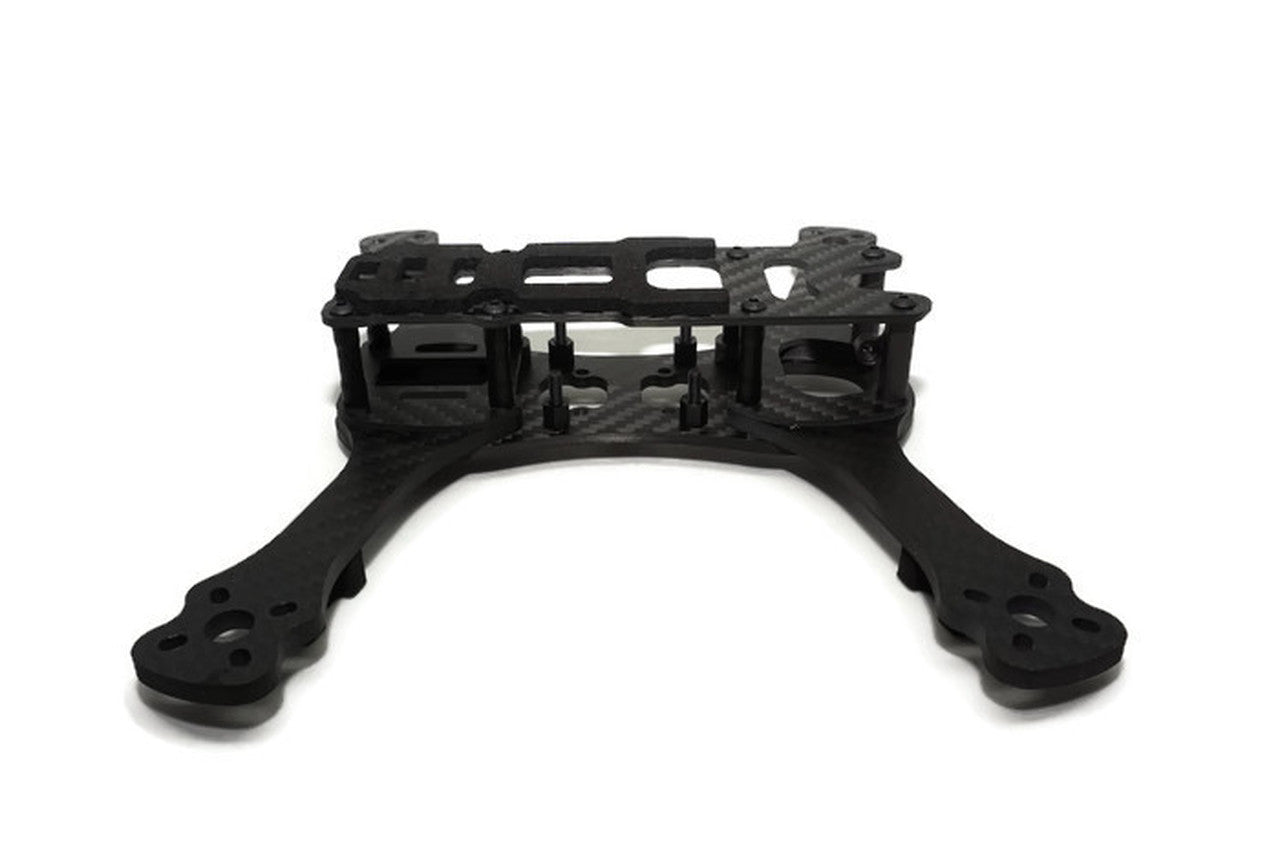

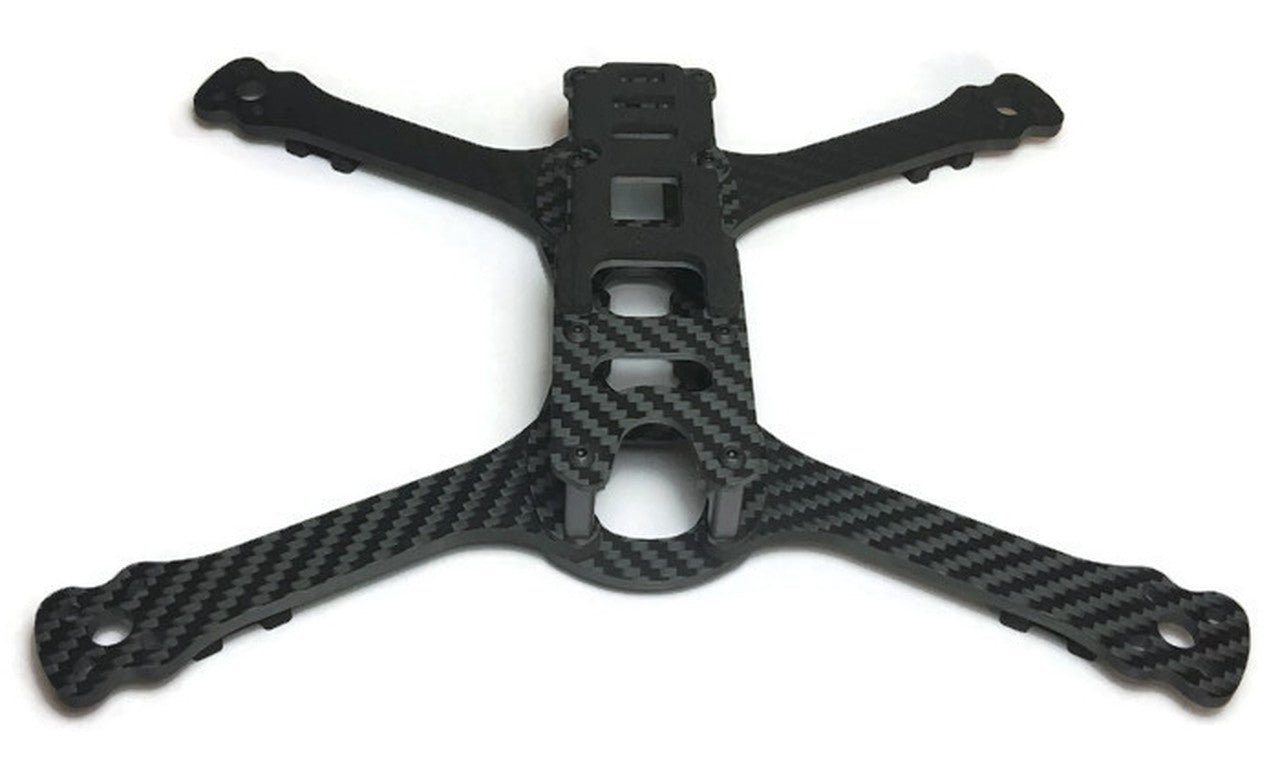

The Dingo frame was designed with you brutal freestyle pilots in mind. Why go buy some POS frame from B**gg**d when you can get this tank for so cheap? There’s plenty of room inside this frame for your electronics. It comes stock with the micro cam mounts featured on the mongoose, but I know some of you will create 3d printed adapters to run bigger cameras. This frame sports a massive 3mm thick main plate and 4mm thick arms (13.5mm wide). You have the option to use 20mm or 30.5mm stacks with a 25.5mm clearance between plates. Battery strap slots on the top plate are located near the rear, so that you’ve got plenty of room up front to mount your GoPro. Slots in the rear of the top plate are there for your VTx antenna to be directly strapped to the under side, with the SMA nicely protected inside the frame.
| Included |
| Carbon fiber |
| 4x arms |
| 1x top plate |
| 1x front top plate |
| 1x rear top plate |
| 1x bottom plate |
| Aluminum |
| 2x cam mounting alumi standoffs |
| 6x M3 20mm standoff |
| Hardware Metal |
| 8x M3 6mm iron bolts |
| 8x M3 14mm iron bolts |
| 2x M2 5mm cuphead iron bolts (cam mount) |
| Hardware Nylon |
| 4x M3 nylon nuts (FC stack) |
| 4x M3 nylon 6mm standoffs (FC stack) |
| Other |
| 1x lipo foam pad |
| 4x dog bone foam landing pads |
| 1x lipo strap |
