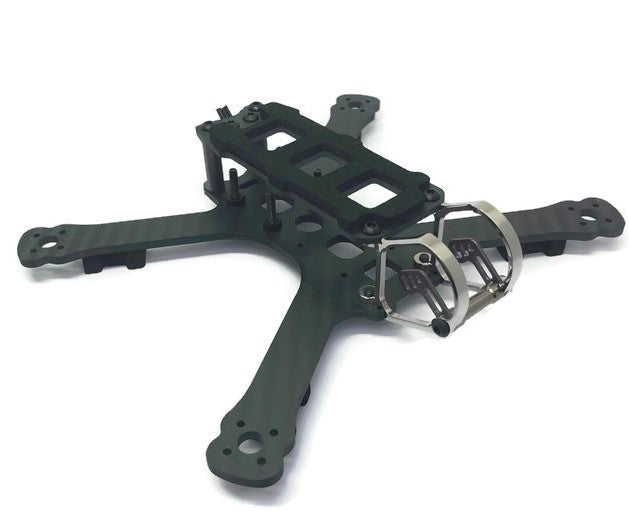

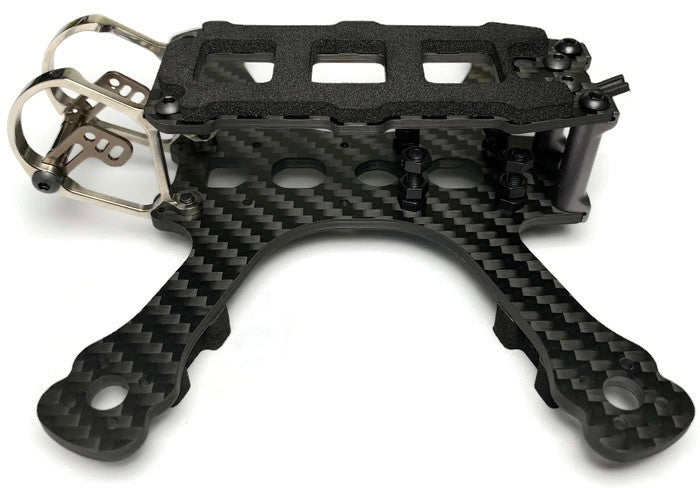

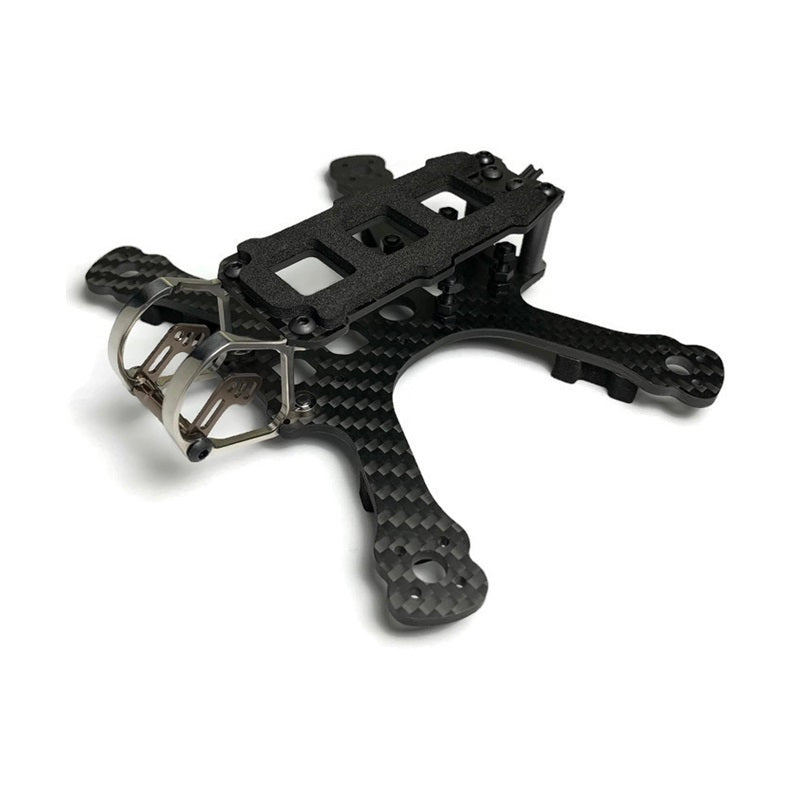

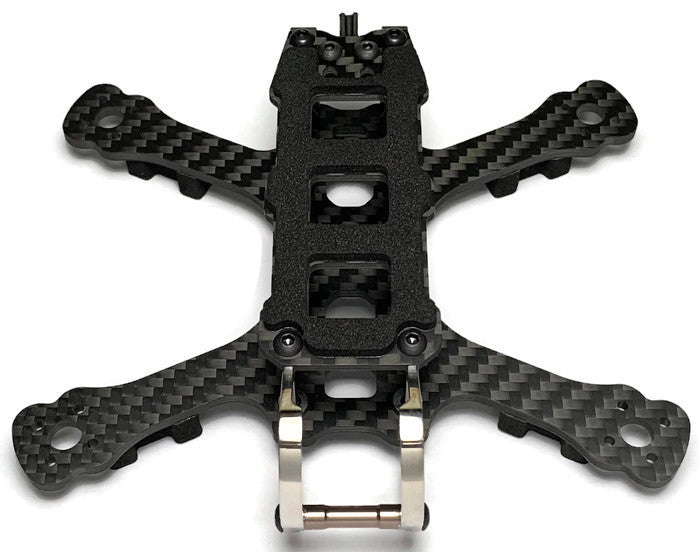

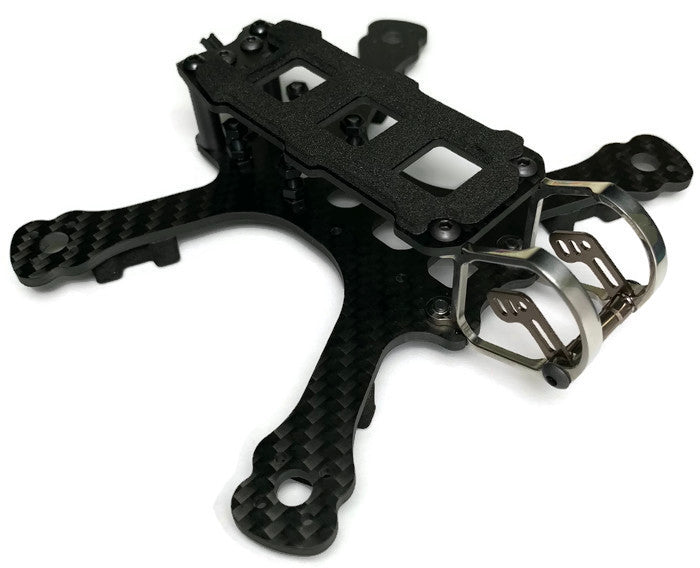

Gecko Frame Kit - Choose 3" or 4"

Gecko Specs
Frame Weight	42g
Motor to Motor	139mm
Frame Shape	Compressed-X 112mm left & Right 82mm front & rear
Main Plate Thickness	3mm
Hardware	TI camera cage Aluminum Standoffs Aluminum Cam saver
Front Stack Mount	M2, 20x20mm (for HD cam board)
Rear Stack Mount	M3 20x20mm (for FC stack)
FPV Camera Mount	Micro compatible
Max Stack Height	22mm
Warrantied Parts	All frame components
Recommended Components
Motor Size	1407 3650KV
ESC	25A
Prop Size	3" or 4"
LiPo	650mAh - 850mAh 4S

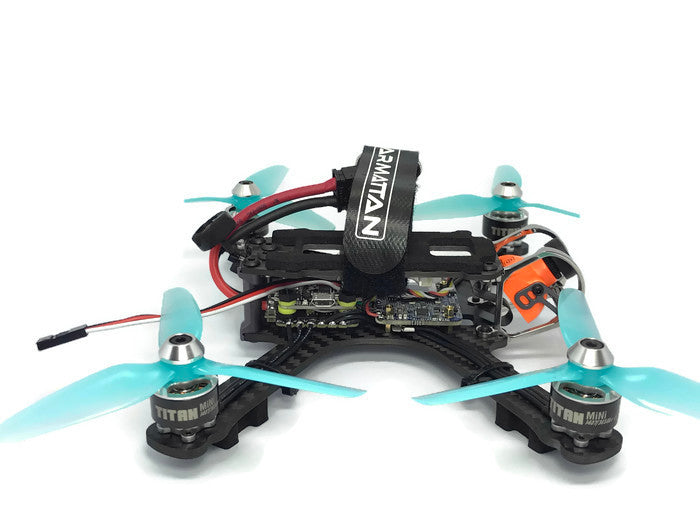

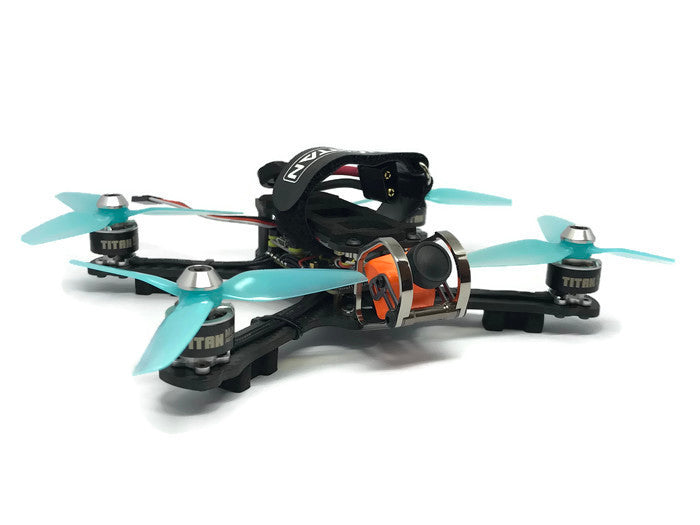

Armattan Gecko

It's innovative. It has grip. It's got style. And best of all? It's Armattan.

The Gecko is the latest addition to Armattan's family of mini-freestyle frames. Designed around the best principals that brought the Japalura and the Rooster to the front of their fields, this frame gives you the best protection and quality that the multirotor kingdom has to offer.

The cage is cut with 6 axis titanium milling. This is a first for Armattan, and it gives the head of this baby a smooth, svelte expression. The aluminum camera saver is a new mounting system designed to protect your camera even in the most crushing of cage crashes. And that's even more important for this frame, because it was designed to safely guard any 19mm micro cam on the market: SD or HD.

The stack mounting system is a fresh take on providing options for pilots. You no longer have to choose between an M2 or an M3 board because the Gecko offers provisions for both. While the 20x20, M2, forward stack was designed to be used for a mini HD split camera board (such as the Runcam Split Mini or Caddx Turtle), you can slap any board you want in there. The rear 20x20, M3 mounting holes will be there for your FC, ESC, VTX, or whatever else is left. And with the familiar 22mm deck height you'll find that your batteries are safely out of the line of fire of your props, but are also low enough to bring the centre of gravity back down towards your prop-line.

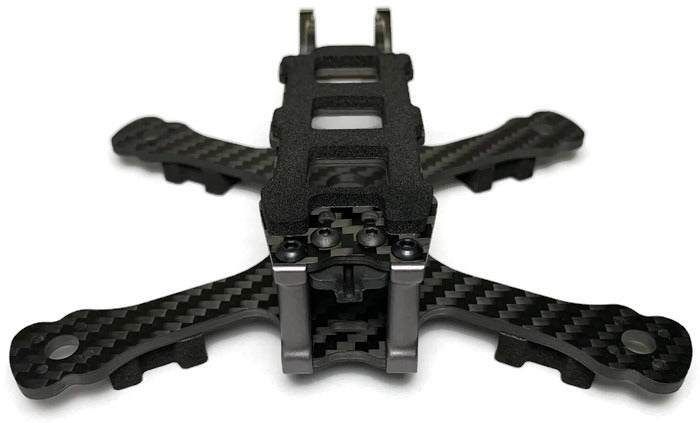

The tail provides the quality mounting options that Armattan is known for. A rubber VTX antenna guide channels thinner gauge antennas (up to 1.8mm) upwards, and out of the way of your props. If that doesn't suit your fancy, simply use the elongated M3 holes to zip-tie your dongle in the tried-and-true way instead. Lastly, lets put an end to rear-impact delamination. The carbon itself is protected from impacts by the custom Aluminum standoffs.

And what about the "big W?"

We're glad you asked. Like you might've thought, the entire frame is warrantied. Carbon, aluminum, and titanium are covered under Armattan's unbeatable lifetime warranty. What can we say, except, "you're welcome?"

Parts List:

Titanium:
2x Camera-cage braces

Hardware:
8x 6mm button-head M3 bolts
4x 4mm button-head M3 bolts
4x 16mm buton-head M3 bolts
2x 5mm cup-head M2 bolts
2x M3 sunk nuts

Aluminum:
2x Camera-saver braces
1x 19.1mm Front standoff (silver)
2x Rear standoffs (black)

Nylon:
4x M3 nuts
2x Washers

Carbon Fiber:
1x 2mm Top (LiPo) plate
1x 3mm Main plate (3 inch or 4 inch)

Other:
1x Lipo strap
1x LiPo foam pad
4x Dog-bone landing pads
1x Molded rubber VTx antenna holder
